记录一次Python大作业

内容目录

作业一

1. 实验范围

基于UDP或TCP/IP协议的通讯小程序。

要求：

能够完成基本的客户与服务器的信息交互功能，按要求撰写实验报告【60分】（已完成）
多客户端交互【加分项】（已完成, 支持最大20个应用[可调整]连接）
历史数据存储【加分项】（已完成, 使用数据库）
使用数据库【加分项】（已完成, 使用sqlite轻量级数据库）
界面友好【加分项】（已完成, 使用tkinter构建美观的GUI界面）
测试分析【加分项】（已完成, 使用logging模块实现服务器日志打印, 进行分析）
使用云资源【加分项】（已完成, server部分部署到腾讯云centos服务器）

2. 需求分析

根据题意，系统需要完成的功能有：

创建服务器，以供用户聊天
提供用户登录
实现用户之间的聊天
使用数据库永久存储聊天信息
构建用户界面
能够记录日志
部署服务器

3.功能描述

用户登录
用户使用默认的服务器端口地址，输入昵称，接着点击‘登录’按钮，实现登录聊天系统。
用户聊天
用户点击‘用户列表’，然后点击发送的对象，此时聊天窗口的标题变为当前用户指向目标用户，此时输入信息后点击‘发送’按钮实现一对一聊天。
群发信息
用户点击‘用户列表’，然后点击‘群发’，输入信息后点击‘发送’按钮实现群发消息。

4. 设计与代码描述

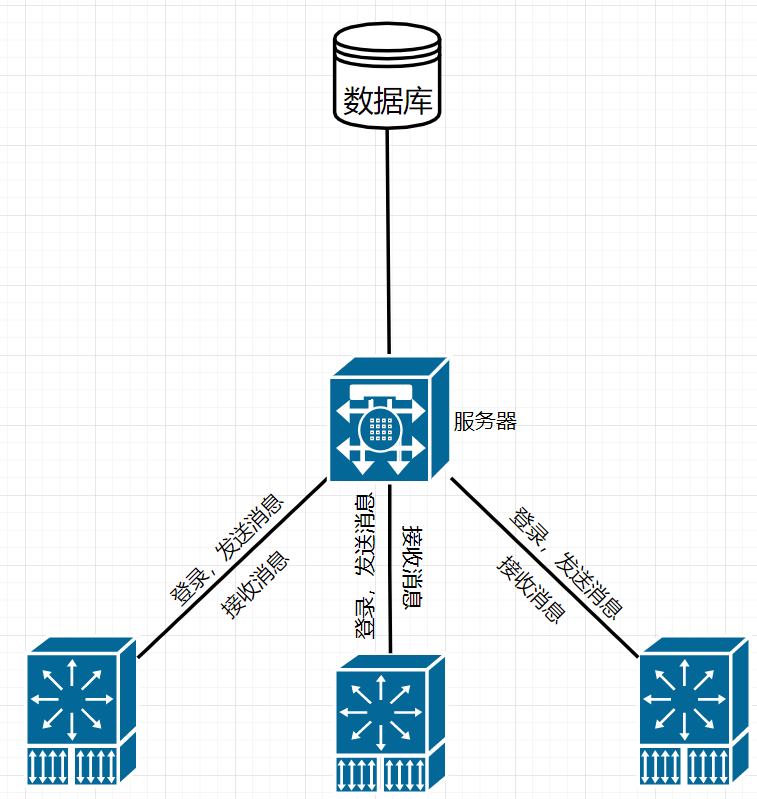

本项目分为服务器端和客户端，采用TCP协议进行网络数据传输。服务端主要用于存放用户连接信息包括用户的ip地址和端口和用户信息，如下图所示

服务端

初始化地址，端口和日志模块 config.py


import logging
import os

IP = "0.0.0.0"
PORT = 8888
logger = logging.getLogger("server")
logger.setLevel(logging.INFO)

rf_handler = logging.StreamHandler()
rf_handler.setLevel(logging.DEBUG)
rf_handler.setFormatter(logging.Formatter("%(asctime)s [%(name)s][%(levelname)s]: %(message)s"))

f_handler = logging.FileHandler(f"{os.path.dirname(__file__)}/log/server.log", "w", encoding="utf-8")
f_handler.setLevel(logging.INFO)
f_handler.setFormatter(logging.Formatter("%(asctime)s [%(name)s][%(levelname)s]: %(message)s"))

logger.addHandler(rf_handler)
logger.addHandler(f_handler)

使用peewee建立数据库连接 sql.py


import os
from peewee import SqliteDatabase, Model, AutoField, CharField

db = SqliteDatabase(f"{os.path.dirname(__file__)}/chat.db")  # 创建数据库对象

class Chat(Model):
    id = AutoField(primary_key=True)
    from_user = CharField()
    to_user = CharField()
    message = CharField()

    class Meta:
        database = db

db.connect()  # 连接数据库
db.create_tables([Chat])  # 创建数据表

实现服务器 server.py


from copy import copy
import queue
import socket
import threading

import json
import time

from config import logger
from sql import Chat

que = queue.Queue()
users = []
lock = threading.Lock()

def onlines():
    online = []
    for i in range(len(users)):
        online.append(users[i][1])
    return online

class Server(threading.Thread):
    def __init__(self, ip, port):
        threading.Thread.__init__(self)
        self.addr = (ip, port)
        self.s = socket.socket(socket.AF_INET, socket.SOCK_STREAM)
        self.s.setsockopt(socket.SOL_SOCKET, socket.SO_REUSEADDR, 1)

    def run(self):
        self.s.bind(self.addr)
        self.s.listen(20)
        logger.info("服务器开始监听 %s" % self.addr[1])
        threading.Thread(target=self.send_data).start()
        while True:
            conn, addr = self.s.accept()
            logger.info("新连接 %s" % str(addr))
            threading.Thread(target=self.tcp_connect, args=(conn, addr)).start()
        self.s.close()

    def recv(self, data, addr):
        global que, lock
        lock.acquire()
        try:
            que.put((addr, data))
        finally:
            lock.release()

    def del_user(self, conn, addr):
        a = 0
        for i in users:
            if i[0] == conn:
                users.pop(a)
                d = onlines()
                self.recv(d, addr)
                logger.info(f"在线用户: {d}")
                break
            a += 1

    def tcp_connect(self, conn, addr):
        real = conn.recv(1024).decode().strip()
        user = copy(real)
        index = 1
        while True:
            for i in range(len(users)):
                if users[i][1] == user:
                    logger.info("用户 %s 已存在" % user)
                    user = real + str(index)
                    index += 1
                    break
            else:
                if user == "null":
                    user = f"{addr[0]}:{addr[1]}"
                users.append((conn, user, addr))
                logger.info(f"用户 [{user}] 已加入")
                break
        d = onlines()
        self.recv(d, addr)
        self.initialize(conn, user)
        try:
            while True:
                data = conn.recv(1024).decode()
                self.recv(data, addr)
            conn.close()
        except ConnectionResetError:
            logger.info(f"用户 [{user}] 已退出")
            self.del_user(conn, addr)
            conn.close()

    def send_data(self):
        global que, users
        # que[0] = 用户地址, que[1] = 消息内容
        # users[0] = 用户连接, users[1] = 用户名, users[2] = 用户地址
        while True:
            if not que.empty():
                data = ""
                message = que.get()
                if isinstance(message[1], str):
                    for i in range(len(users)):
                        if message[0] == users[i][2]:
                            logger.info(f"用户 [{users[i][1]}] 发送消息: {message[1]}")
                            data = message[1]
                            messages = data.split(":;")
                            Chat.create(from_user=messages[1], to_user=messages[2], message=messages[0])
                            break
                    for i in range(len(users)):
                        try:
                            users[i][0].send(f"{data}\n".encode())
                        except ConnectionResetError:
                            pass
                elif isinstance(message[1], list):
                    data = json.dumps(message[1])
                    for i in range(len(users)):
                        try:
                            users[i][0].send(f"{data}\n".encode())
                        except ConnectionResetError:
                            pass

    def initialize(self, conn, user):
        data = Chat.select().where((Chat.to_user == "[群发]") | (Chat.to_user == user)).order_by(Chat.id)
        for message in data:
            conn.send(f"{message.message}:;{message.from_user}:;{message.to_user}\n".encode())

主函数 main.py


import sys
import time
from config import IP, PORT, logger
from server import Server

if __name__ == "__main__":
    app = Server(IP, PORT)
    app.start()
    while True:
        time.sleep(1)
        if not app.is_alive():
            logger.info("服务器已关闭")
            sys.exit(0)

客户端

基础配置


IP = "blog.fengqiwu.xyz"
PORT = 8888
user = ""
list_open = False
users = []
chat = "[群发]"

连接服务器


class Connection(socket):
    def __init__(self, ip, port, user):
        super().__init__(AF_INET, SOCK_STREAM)
        self.ip = ip
        self.port = port
        self.user = user
        self.connect((self.ip, self.port))
        if self.user:
            self.send(self.user.encode())
        else:
            self.send("null".encode())

    def __del__(self):
        self.shutdown(2)

登录界面


class LoginRoot(Tk):
    def __init__(self):
        global IP, PORT, user
        super().__init__()
        self.title("登录")
        self.geometry("270x110")
        self.resizable(False, False)

        self.addr = StringVar()
        self.addr.set(f"{IP}:{PORT}")

        self.user = StringVar()
        self.user.set(user)

        # 服务器地址
        self.addr_label = Label(self, text="地址:端口")
        self.addr_label.place(x=20, y=10, width=100, height=20)

        self.addr_entry = Entry(self, width=80, textvariable=self.addr)
        self.addr_entry.place(x=120, y=10, width=130, height=20)

        # 用户名
        self.user_label = Label(self, text="用户名")
        self.user_label.place(x=30, y=40, width=80, height=20)

        self.user_entry = Entry(self, width=80, textvariable=self.user)
        self.user_entry.place(x=120, y=40, width=130, height=20)

        self.bind("", self.login)  # 回车绑定登录事件
        self.button = Button(self, text="登录", command=self.login)
        self.button.place(x=100, y=70, width=70, height=30)

    def login(self, *args):
        global IP, PORT, user
        IP, PORT = self.addr_entry.get().split(":")
        PORT = int(PORT)
        user = self.user_entry.get()
        if not user:
            messagebox.showerror("提示", message="用户名不能为空")
        else:
            self.destroy()

聊天窗口


class ChatRoot(Tk):
    def __init__(self, conn: socket):
        global user
        super().__init__()
        self.conn = conn
        self.title("聊天室: " + user)
        self.geometry("580x400")
        self.resizable(False, False)

        # 多行文本框
        self.chat = ScrolledText(self)
        self.chat.place(x=5, y=0, width=570, height=320)
        # 配置字体颜色
        self.chat.tag_config("red", foreground="red")
        self.chat.tag_config("blue", foreground="blue")
        self.chat.tag_config("green", foreground="green")
        self.chat.tag_config("pink", foreground="pink")
        self.chat.insert(END, "欢迎来到聊天室!", "blue")

        # 在线用户列表
        self.online_list = Listbox(self)
        self.online_list.place(x=445, y=0, width=130, height=320)

        # 在线用户按钮
        self.btn1 = Button(self, text="用户列表", command=self.show_users)
        self.btn1.place(x=485, y=320, width=90, height=30)

        # 输入框
        self.context = StringVar()
        self.context.set("")
        self.entry = Entry(self, width=120, textvariable=self.context)
        self.entry.place(x=5, y=350, width=570, height=40)

        # 发送按钮
        self.btn2 = Button(self, text="发送", command=self.send)
        self.btn2.place(x=515, y=353, width=60, height=30)

        self.online_list.bind("", self.private)

        threading.Thread(target=self.recv).start()

    def show_users(self):
        global list_open
        if list_open:
            self.online_list.place(x=445, y=0, width=130, height=320)
            list_open = False
        else:
            self.online_list.place_forget()  # 隐藏
            list_open = True

    def send(self, *args):
        global users, user
        users.append("[群发]")
        print(chat)
        if chat not in users:
            messagebox.showerror("提示", message="没有聊天对象")
            return
        elif chat == user:
            messagebox.showerror("提示", message="不能给自己发送消息")
            return
        mes = f"{self.entry.get()}:;{user}:;{chat}"
        self.conn.send(mes.encode())
        self.context.set("")

    def private(self, *args):
        global chat
        indexs = self.online_list.curselection()
        index = indexs[0]
        if index > 0:
            chat = self.online_list.get(index)
            if chat == "[群发]":
                self.title(f"聊天室: {user}")
                return
            self.title(f"聊天室: {user} -> {chat}")

    def recv(self):
        global users, user
        while True:
            data = self.conn.recv(1024).decode()
            messages = data.split("\n")
            messages.pop()
            for m in messages:
                try:
                    data = json.loads(m)
                    users = data
                    self.online_list.delete(0, END)
                    number = "在线人数: " + str(len(data))
                    self.online_list.insert(END, number)
                    self.online_list.itemconfig(END, fg="green", bg="#f0f0ff")
                    self.online_list.insert(END, "[群发]")
                    self.online_list.itemconfig(END, fg="green")
                    for i in range(len(data)):
                        self.online_list.insert(END, (data[i]))
                        self.online_list.itemconfig(END, fg="green")
                except:
                    data = m.split(":;")
                    message = data[0].strip()
                    username = data[1]
                    obj = data[2]
                    if obj == "[群发]":
                        if username == user:
                            self.chat.insert(
                                END, f"\n[{username}] 发送: {message}", "blue"
                            )
                        else:
                            self.chat.insert(
                                END, f"\n来自 [{username}]: {message}", "green"
                            )
                    elif obj == user or username == user:
                        if username == user:
                            self.chat.insert(END, f"\n发送给 [{obj}]: {message}", "red")
                        else:
                            self.chat.insert(
                                END, f"\n来自[{username}]: {message}", "purple"
                            )
            self.chat.see(END)

主逻辑


class Client:
    def __init__(self):
        global IP, PORT, user
        self.login_tk = LoginRoot()
        self.login_tk.protocol("WM_DELETE_WINDOW", self.close)
        self.login_tk.mainloop()

        self.conn = Connection(IP, PORT, user)

        self.chat_tk = ChatRoot(self.conn)
        self.chat_tk.protocol("WM_DELETE_WINDOW", self.close)
        self.chat_tk.mainloop()

    def close(self):
        if hasattr(self, "conn"):
            del self.conn
        if hasattr(self, "chat_tk"):
            self.chat_tk.destroy()
        os._exit(0)

主函数


from client import Client

if __name__ == "__main__":
    client = Client()

未完待续
